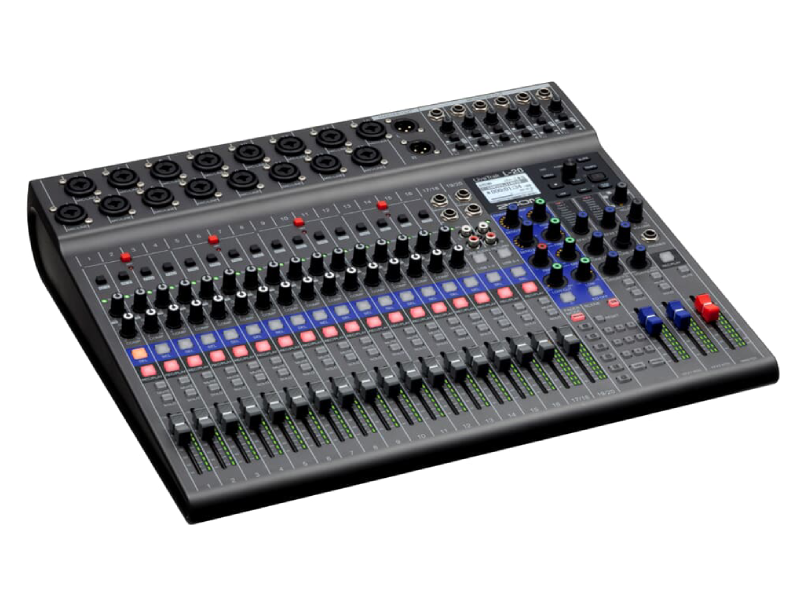

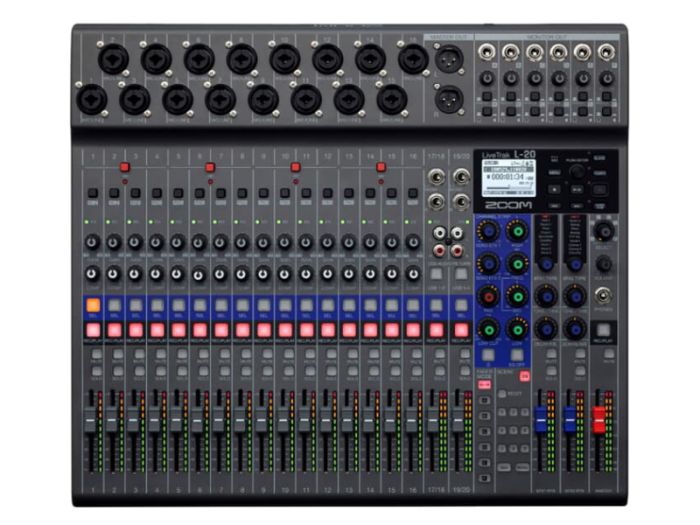

Zoom LiveTrak L-20

20 Inputs for Bigger Sound The LiveTrak L-20 is designed to mix bigger. It features 20 inputs (16 mono mic/line inputs and two stereo inputs), all with independent 3-band mid-parametric EQ. The 16 mono inputs offer stand-alone compressor control.

22 Tracks of Recording Record 20 discrete channels plus a stereo mix directly to an SD card. The LiveTrak L-20 captures pristine audio in resolutions up to 24-bit/96 kHz.* At -128 dBu EIN with +60 dB maximum input gain, the L-20 is equipped with our quietest and most advanced preamps ever. Mix down finished songs on the L-20 or transfer your discrete tracks to a DAW to perfect later.



*Effects, EQ, overdub, audio interface, and fader modes A-F are not available in 96 kHz.

Wireless Mixing The LiveTrak L-20 offers wireless control* via a free iOS mobile app "L-20 Control" featuring most onboard functions, including Fader Levels and Modes, Scenes, EQ, EFX sends, returns, parameters, and more. You can even manage your Effects Library and Scene Library right from your device. Control it all on either large Monitor Out view with a mini transport, or a mini Monitor Out view with expanded Transport controls.

* Zoom Bluetooth adapter (ex. BTA-1) required. Communication at up to 10 meters is possible in an unobstructed indoor space with BTA-1 units.

LiveTrak L-20 Features - 20 discrete channels (16 mono plus 2 stereo) with XLR or ¼-inch connectivity - 22-track simultaneous recording, 20-track playback - 22-in/4-out USB audio interface connectivity - Records up to 24bit/96kHz audio to SD card - 48V phantom power - Hi-Z connectivity (channels 1-2) - 26dB pad (channels 3-16) - Built-in compression control (Channels 1-16) - Solo buttons for individual channels - Variable frequency low-cut control - Main outputs plus 6 customizable monitor outputs - Dedicated headphone output for sound engineer - Scene saving function, up to 9 scenes saved at a time - 20 built-in chorus, delay and reverb effects with adjustable parameters - Two effect busses - Built-in slate mic - Class-compliant mode (for iOS compatibility) - Compatible with Remote Mixer app for iPad - Automatic recording starting/stopping capability - Pre-record function - Import/export projects with USB 2.0 host port - Compatible functions for ZOOM FS01 footswitch - Automatic power-save function - What's in the Box - Included with the L-20 - AD-19 AC Adapter - USB 2.0 Cable - Quick Guide
